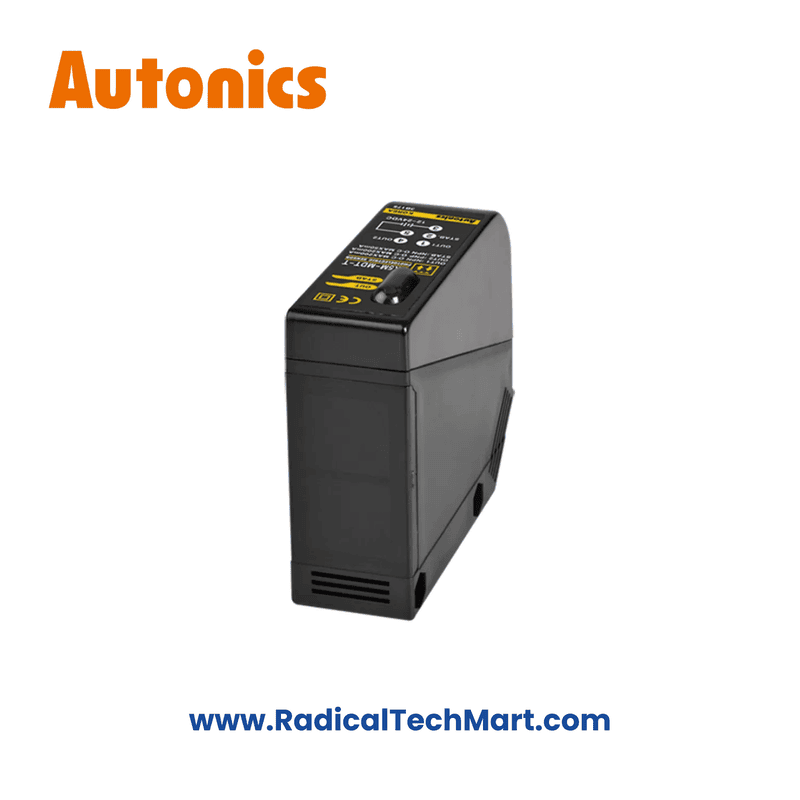

BX5M-MDT-T Autonics Photoelectric Sensor
Non-returnable
₹2,130.00
Product Details
| Product | Description |
|---|---|
| Brand | Autonics |
| Model no | BX5M-MDT-T |
| Sensing type | Transmitted Beam |
| Sensing distance | 15mm |
| Light source | Infrared LED |
| Response time | Max. 1ms |
| Power supply | 12-24VDC |
| Current consumption | Max 40mA |
| Operation mode | Selectable Light ON/Dark On by Slide Switch |
| Control output | NPN open collector |
| Connection type | Connector type(M8) |
| Protection structure | IP66 |
| Environment Ambient humidity | 35 to 85% RH, storage: 35 to 85% RH |
| Material | Case : ABS, Lens Cover :- Acrylic, Lens : Acrylic |
| Accessories | Adjustment Driver, Fixing Bracket, Bolts / Nuts |
| Weight | Approx. 212g |
